Vf-N73K - videoscope - 6.5 foot(2000MM) cable
Article Sent By: email@example.com (Beatriz Bernard)
Beatriz Bernard is presenting: Vf-N73K - videoscope - 6.5 foot(2000MM) cable
Store Search in titles & descriptionsng
Tool-Endoscopes Flexible Endoscopes Rigid Endoscopes Videoscope Beauty-Endoscopes
Look at places unable to see and do your work easily!

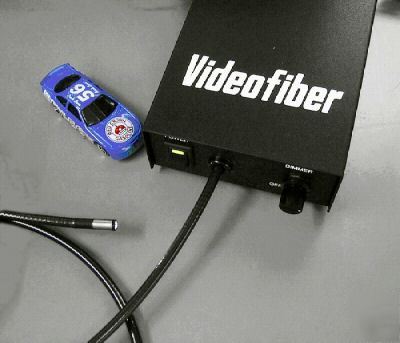

INDUSTRIAL VIDEO-SCOPE VF-N73K
The Video Scope can be connected to a TV, Video or any other output device with a standard Video-Input
(NTSC and PAL available). After turning the power switch on, the integrated light source of the Video Scope
will illuminate any opening/hole that needs to be inspected. The ultra-small size object lens (only 0.06 inch in
diameter) is located on the top of the fiver within a hard spiral tube/stainless pipe. It magnifies the inspected
object at 500% on a 14-inch monitor. The insertion cable is only 0.23 inch in diameter, with a length of
Lens and light-source are directly integrated in the flexible cable !
There are 15 small lightguides around the lens. This an even illumination is guaranteed.
LED - what are the advantage ?
10.000 hours durability (halogen-lamp only 200-300, yellow-light 1000 hours)
low-level consumption compared to halogen and yellow-light
no diminishing of the light power during the life-time !
nearly no heat-expansion (cold-light)
high schock and vibration-proof
The (nearly) infinite range of applications:
As exercise device for academies and universities.
For constuction-ingeneers to check basic structure of buildings without big interferferences.
Aid by installing heatig systems. Looking behind tilings only trough a 0.23 inch bore !
Electricans are able to check wires for damages and completeness.
Exploration of beehives, wasphives, nests, insect-gangways, mole/mouse gangways/nests/hills, varmint-plagues or animal-preparations.
Inside aquariums discovering fish-caves in darkness....
Applicable in all areas thtat are narrow with many corners and angles, difficult to see or dangerous. Without cost and time-consuming disassemblies.
You get 1 Year Product Warranty for this device !
* Gross Weight: 19.4 oz (550g)
* Cable Length: 6.5 Foot (200mm) , Spiral Hard Tube .
!!! This model takes generally about 4 weeks delivery time !!!
* Maximum bending radius: 3.1 inch (80mm)
* Diameter of the Lense: 0.06 inch (1,5mm)
* Light Source: LED with 10 000 hours durability
* Dimmer: infininitely variable
* Focus area: 1.18 inch - infinite (30mm-infinite)
* View angle: 50 (+/- 2) degrees
* Reflector: 120 degree ( included !!! )
* Magnification: 500% by 14inch monitor (at 1.18 inch distance)
* Diameter of cable tip: 0.23 inch (6mm)
* Temperature resistance: between -23 and +140° F
* Main Material: Steel , Optical fiber
Specification might change without the notices for product improvement.
! The article will be send directly from the manufacturer in Japan !
