Esd safe thru-hole hot air rework station 906
Article Sent By: firstname.lastname@example.org (Isaac Patel)
Isaac Patel is presenting: Esd safe thru-hole hot air rework station 906

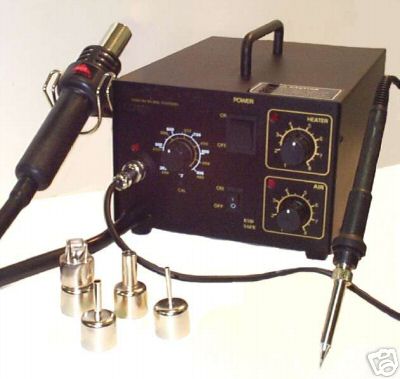

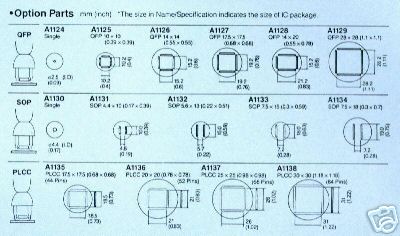

An SMT rework station & soldering station in one handy unit! Perfect for shops & labs dealing with todays SMT board designs.O.E.M. manufactured just for CSI., so we can offer the best price possible ! This multi-purpose station is perfect for all your surface mount and thru-hole requirements. The ESD safe soldering iron uses a ceramic heating element for fast heat up & stable temperature control. A seperate aluminum constructed soldering iron holder is included (not shown in picture) The comfort grip handle make it easy to use all day, while the easy-off conector make it convenient to move out of the way when not using, or easy to replace if needed. The temperature is controlled by a centrally located knob. The hot air soldering is controlled by two adjustable knobs which allow you to achieve a temperature range from 100°C to 500°C / 212°F to 932°F. One knob is for air flow, the other for the temperature. Comes complete with 4 hot air nozzles.As seen on the nozzle chart below, you get A 2.5mm,(QFO single, item # A1124 ) 4.4mm (SOP single, item # A1130 ), a 10 x 10mm gull wing (QFP 10mm x 10mm, item # A1125)plus an 8mm single general purpose type for large area heat targeting or even shrinking heat shrink tubing.(not shown on the nozzle chart below. This is a fantastic value !
* Power consumption:24 VAC, 40W
* Tip to Ground Resistance: Under 2 ohms
* Tip to Ground Potential: Under 2mV( Typ. 0.6mV)
* Cord assembly: 1 M with strain relief at iron
NEW - NOT USED OR REFURBISHED!
* One year replacement warranty against manufacturing defects
Replacement Soldering Iron $11.95
0.8mm Chisel Tip $4.95 1.2mm Chisel Tip $4.95
1.6mm Chisel Tip $4.95 2.4mm Chisel Tip $4.95
3.2mm Chisel Tip $4.95 1mm Single Flat 40° Tip $4.95
2mm Single Flat 40° Tip $4.95 3mm Single Flat 40° Tip $4.95
4mm Single Flat 40° Tip $4.95 Long Conicle Fine Point Tip $4.95
