Unittool heavy duty c frame 8HP1 punching unit
Article Sent By: firstname.lastname@example.org (Hannah Gonzales)
Hannah Gonzales is presenting: Unittool heavy duty c frame 8HP1 punching unit

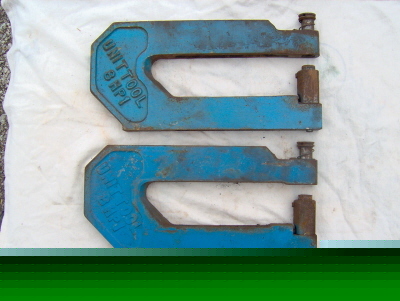

UnitTool Heavy Duty C Frame 8HP1
Unittool "HP" Series Heavy Duty Series C Frame Punching Unit
Cost New: $114.00 (UnitTool Punch & Die Co. 2006)
8 3/8" (212.7 mm) Shut Height / 3 1/2" (88.9 mm) Die Height
PUNCH SIZE: .437 Max / .093 Min / Material Max: 1/4"
Unittool's Heavy-Duty Series Punching Units are designed for rugged punching operations.The units can be furnished for either round or shaped hole punching.The base of the holders contains pilot pins for location. Model "HP"- Designed with a pedestal die section to allow die to be ground away in order to punch close to an inside leg of an angle or other obstructions. The pedestal die can be revolved 360 degrees in order to direct slug ejection chute in any desired direction (round hole only).
For jobbing work or high performance work in punch press, press break, arbor press or use with air cylinder. Units are manufactured with a slug ejection chute. To prevent "jam up" the slugs should occasionally be removed.
For more information or tooling purchases visit UnitTool Punch & Die Company on the web.
Please message me with any questions. Answered daily. Include email address if you wish a tool spec sheet.
See our STORE (click here) for a full gallery of all of our online listings including more great used Unittol, Strippit, Amada and Wilson Punching Units, punches, dies and special tooling. Check back often for new listings as we will be listing hundreds of items. Thanks for looking and GOOD LUCK!
CLICK HERE for MORE USED TOOLING ITEMS!
