Agilent hp vector impedance meter 4193A rf engineering
Article Sent By: email@example.com (Jacquelyn Ortiz)
Jacquelyn Ortiz is presenting: Agilent hp vector impedance meter 4193A rf engineering

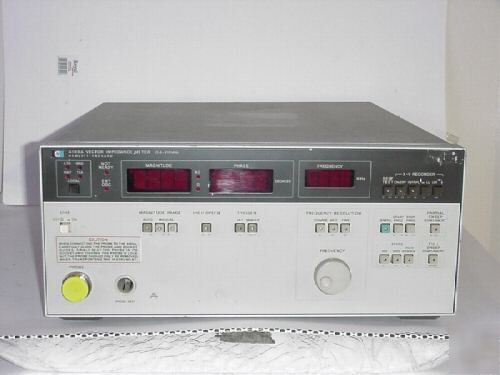

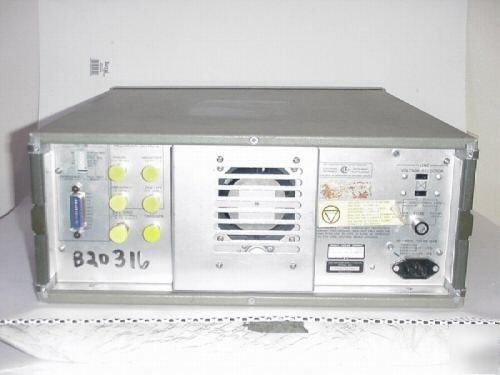

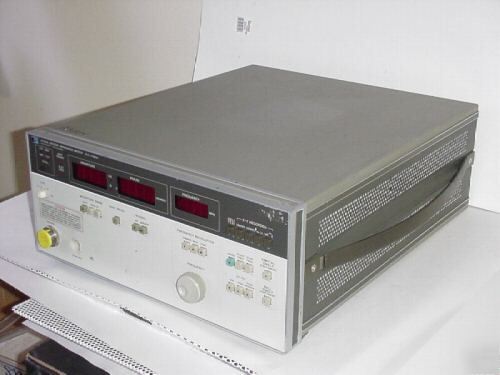

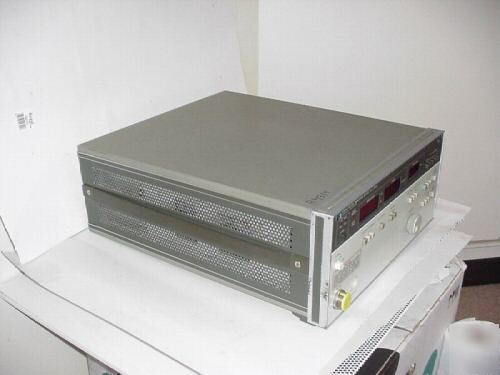

Please note this instrument does not come with probe however we have checked it with another complete instrument and works perfectly.The Hewlett Packard Model 4193A Vector Impedance Meter is a probe-type, fully automatic microprocessor-based test instrument designed for laboratory and production line applications. It measures and digitally displays impedance magnitude, |Z|, and phase angle, θ, of active circuits such as RF Transistors, or passive circuits such as capacitors and resistors, in-circuit components, discrete components at test frequencies from 400kHz to 110MHz with 10mΩ (impedance) and 0.1Â° (phase) resolution. Frequency and measured impedance and phase are displayed on the front-panel with 4-digit and 3 1/2 digit resolution, respectively. Two measurement speeds are provided: NORMAL and HIGH SPEED. In NORMAL mode operation, the 4193A performs one measurement per second; in HIGH SPEED mode operation, it performs approximately seven measurements per second.
This item is useful in circuit designing and impedance matching. The Vector Impedance passes its selftest and the unit was tested with a probe. Please note probe is not included with this unit. The Vector Impedance Meter is fully functional!!
firstname.lastname@example.org (Jacquelyn Ortiz)
for additional information. This email is used for forwarding to newsgroup user.
