5 each pressure transducer, 0-1000 psia w/3.5' lead
Article Sent By: firstname.lastname@example.org (Allie Simmons)
Allie Simmons is presenting: 5 each pressure transducer, 0-1000 psia w/3.5' lead
Statham or CEC Range 0-1000 psia

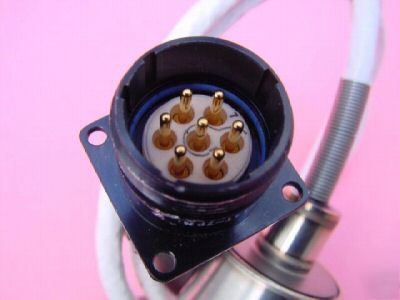

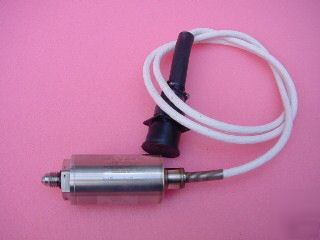

Has cable over 3.5 ft. long with connector (see picture). You can get the mating connector, or cut the connector off and put your own one on. Comes with pin reference and wire color codes. Pins: Input (28VDC), output, calibration. (Your input voltage can vary somewhat from 28V and this unit will accommodate that.) Can be easily shunt calibrated, or dead-weight calibrated. Internal, regulated conditioner/amplifier. No external amp or conditioner needed.
Dimensions are approx. 1.37 x 2.63 inches (body).
This item has never been used. It was installed on equipment for a government program and calibrated. When the program was ended, the parts were excess.
