Lecroy LC684D digital oscilloscope

Article Sent By: elmerclay@machine--tools.com (Elmer Clay)
Elmer Clay is presenting: Lecroy LC684D digital oscilloscope

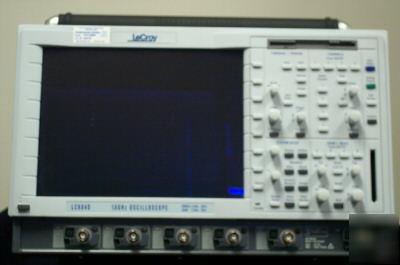

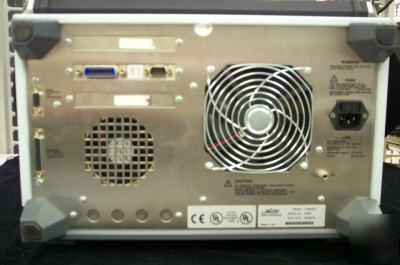

LeCroy LC684D Oscilloscope, Digital: 1.5GHz,8GSa/s,4ch (Stand alone)
The LeCroy LC684D oscilloscope is a graph-displaying device – it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.
The LeCroy LC684D oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the “moving parts” of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
YOUR COMPLETE TEST AND MEASUREMENT PROVIDER!!
(please look at our rules and privacy policy)
Contact elmerclay@machine--tools.com (Elmer Clay) for additional information. This email is used for forwarding to newsgroup user.
